Infrared Temperature Gun – Testo 830-T1

Model No: Testo 830-T1Part No: 0560 8311

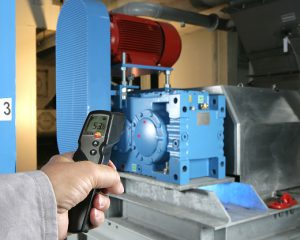

The testo 830-T1 infrared temperature gun equips you for efficient, non-contact surface temperature measurements for undertaking control measurements in trade and industry.
  1. Laser measurement point marker and large optics for exact measurement even at greater distances Fast recording of measurement values at two measurements per second
  2. Adjustable emissivity
  3. Two adjustable alarm limit values
  4. Good handling thanks to ergonomic “pistol design“
  5. Hold function and display of min./max. values
  6. Distance to measurement spot 10:1
  7. measurement spot marking 1-point laser

Details

The testo 830-T1 infrared temperature gun with laser measurement spot marker and 10:1 optics is suitable for non-contact surface temperature measurements in trade and industry.
Overview of the advantages of the testo 830-T1 infrared temperature gun :
testo 830-T1 infrared temperature gun facilitates fast and accurate non-contact measurement of the surface temperature (2 measurements a second). To summarise, the infrared temperature gun offers the following advantages:
–    High resolution processor for utmost accuracy (resolution 0.1 °C)
–    10:1 optics for precise measurements even at medium distances
–    IR thermometer with 1 point laser measurement spot marker to target the measuring point
–    Two alarm limit values that can be defined as required
–    Visual and acoustic alarm if limit value exceeded
–    Min./max. value display and hold function (to record a measured value)
–    Convenient one-handed operation thanks to the ergonomic gun-style design
–    Clear, illuminated digital display
The speed of the testo 830-T1 infrared temperature thermometer is impressive: it can take two measurements per second that helps you undertake bigger measuring tasks quickly and efficiently.

For infrared temperature gun, the emission level can be individually set. This allows you to adjust it precisely to the surface of the material being measured, to achieve the best possible measurement results. For untreated surfaces with a low emission level, we recommend using an emission tape (optional) which makes the IR temperature measurement significantly easier.

Technical Data

Temperature – TC Type K (NiCr-Ni)
Measuring range -30 to +400 °C
Accuracy ±1.5 °C (-20 to 0 °C),±2 °C (-30 to -20.1 °C),±1 °C or ±1 % of mv (Remaining Range)
Measuring rate 0.5 s
Infrared resolution 0.1 °C
General technical data
Dimensions 190 x 75 x 38 mm
Operating temperature -20 to +50 °C
Housing ABS
Battery type 9V block battery
Battery life 15 h
Storage temperature -40 to +70 °C
Weight 200 g

Applications

Downloads

 Datasheet Download  Instruction Manual Download
