IR food Safety Thermometer – testo 104IR

Model No: testo 104IRPart No:0560 1040

Incoming food, food on display, food in storage: the testo 104-IR food safety thermometer allows you to carry out quick and reliable temperature and food safety checks in the course of your busy working day. Ideal for use in the food sector, restaurants and the retail industry.

  • For carrying out surface and core temperature measurements
  • With integrated probe and infrared laser
  • 2-point laser and 10:1 optics for accurate measurements
  • HACCP / EN 13485 compliant

Details

The testo 104-IR food safety thermometer is ideal for carrying out temperature and food safety checks. Thanks to its folding mechanism, which makes it fit snugly in any pocket and could be available whenever you need it, to carry out checks on incoming goods, spot checks during transport or food inspections in the retail industry.
Food thermometer and infrared thermometer rolled into one
The testo 104-IR is equipped with a high-precision 2-point laser and 10:1 optics which show the exact measurement range and allow you to carry out quick and accurate non-contact surface temperature measurements.The 2-in-1thermometer is especially useful for checking incoming goods and for scanning the surface temperature of individual food products as well as whole pallets.

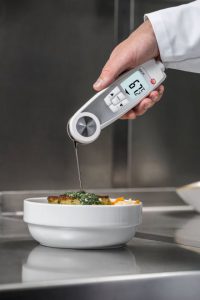

The folding probe thermometer is used to measure the core temperature of food products like meat and sausage meat for example. It generally comes into play when the infrared surface measurements are not within the prescribed thresholds. The probe can be folded away when not in use to protect against breakage.

Quick and easy to use. Tried and tested in the field
The food thermometer is immediately activated when the probe sensor is folded down. Simply press a key to start the infrared measurement. The results are presented on a large, easy-to-read display. No need of instructing users for  how to use, thanks to  easy and self- explanatory keys. Last but by no means least, the food safety infrared thermometer is waterproof and IP65 rated.

Areas of Application
It doesn’t matter whether the food in question isbeing delivered, is in transit or in storage –in all three cases it is imperative that the cold chainis maintained at all times. The testo 104-IR food safety thermometer is ideal for ensuringthat the prescribed temperature is maintained at each point in the cold chain. And like all the testo temperature meters for the food industry thetesto 104-IR is EN 13485 certified and HACCP compliant.

Delivery Scope

testo 104-IR waterproof infrared food safety thermometer, fold-away probe, batteries, calibration protocol.

Technical Data

Temperature – NTC

Measuring range

-50 to +250 °C

Accuracy

±1 °C (-50.0 to -30.1 °C)

±0.5 °C (-30.0 to +99.9 °C)

±1 % of mv (Remaining Range)

Resolution

0.1 °C

Reaction time

t99 = 10 s (measured in moving liquid)

Temperature – Infrared

Measuring range

-30 to +250 °C

Accuracy

±2.5 °C (-30 to -20.1 °C)

±2.0 °C (-20 to -0.1 °C)

±1.5 °C or ±1.5 % of mv (Remaining Range)

Measuring rate

0.5 s

Infrared resolution

0.1 °C

General technical data

Weight

198 g (incl. batteries)

Dimensions

281 x 48 x 23 mm (Probe folded out)

178 x 48 x 23 mm (probe folded away)

Operating temperature

-20 to +50 °C

Protection class

IP65

Length probe shaft tip

32 mm

Diameter probe shaft

3 mm

Diameter probe shaft tip

2.5 mm

Product-/housing material

ABS / TPE / PC, diecast zinc, stainless steel

Length probe shaft

106 mm

Product colour

white

Laser spot

on / off

Measurement value

Temperature °C / °F / °R

Measurement mode

Hold or auto hold (immersion probe)

Dimensions (probe folded out)

281 x 48 x 23 mm

Dimensions (probe not folded out)

178 x 48 x 23 mm

Standards

EN 13485

Battery type

2 AAA micro batteries

Battery life

10 h at 25°C typical

Display type

LCD

Display size

one-line

Display function

with status line (°C,°F,°R, battery, hold/auto hold, min, max, laser, measurement, emissivity)

Display ligthing

illuminated

Storage temperature

-30 to +70 °C

Applications

Downloads

 Datasheet Download  Instruction Manual Download
