Voltage tester – Testo 750-1

Model No: Testo 750-1Part No:0590 7501

Your reliable companion when it comes to testing electrical systems and equipment. The all-round LED display and unique fibre-optic technology mean the voltage indication can be seen clearly and distinctly from any position with this voltage tester.

  • Clear, patented all-round LED display
  • In accordance with DIN EN 61243-3:2011 and CAT III
  • Fibre-optics for optimum voltage indication
  • Robust housing with ergonomic handle and anti-slip ring
Enquire now

Details

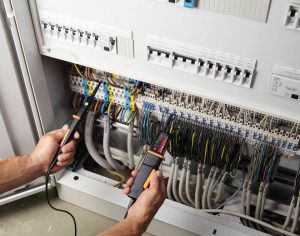

In contrast to the standard voltage testers on the market, the testo 750-1 voltage tester has an extremely practical all-round LED display which can easily be seen in every work position and from any location. In addition, large fibre-optic illuminators show the presence of voltage clearly and distinctly. The deep-seated anti-slip ring, the ergonomic shape of the handle and the robust housing provide greater comfort when working. The robust design means the voltage tester is durable and reliable, even when used intensively.The testo 750-1 voltage tester enables voltage or de-energization on electrical circuits or systems to be determined reliably. The instrument meets the latest EN 61243-3:2010 voltage tester standard and has a safety specification according to CAT III. In addition, it is suitable for continuity testing and rotating magnetic field measurement.

Delivery Scope

testo 750-1 voltage tester, including batteries, measuring tip protector, measuring tip caps, calibration protocol and instruction manual.

Technical Data

DC voltage

Measuring range

12 to 690 V

Accuracy

according to DIN EN 61243-3:2011
AC voltage

Measuring range

12 to 690 V

Accuracy

according to DIN EN 61243-3:2011
General technical data

Operating humidity

0 to 95 %RH

Weight

230 g

Dimensions

270 x 65 x 35 mm

Operating temperature

-10 to +50 °C

Product colour

Black

Protection class

IP64

Standards

EN 61243-3; EN 61326-1; EN 61010-1

Battery type

2 AAA micro batteries

Storage temperature

-15 to +60 °C

Overvoltage Category

CAT IV 600V; CAT III 1000V

Authorizations

CSA; CE
Instrument Measurement Functions

Continuity testing

yes

Display ligthing

yes

Rotating magnetic field testing

yes

Single pole phase testing

–

Measuring point illumination

–

Downloads


Datasheet Download Instruction Manual Download

Applications
